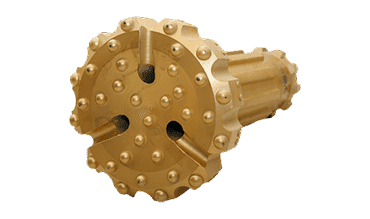

DTH BITS MANUFACTURERS

SVE Drilling Tools, a distinguished name among DTH bits manufacturers, is at the forefront of providing high-quality drilling solutions for various industries. Our commitment to excellence and innovation sets us apart in the field, making us a preferred choice for those seeking reliable Down-The-Hole (DTH) bits. At SVE Drilling Tools, we understand the critical role that DTH bits play in efficient drilling operations. Our products are engineered with precision and durability in mind, utilizing advanced technologies to meet the demands of diverse drilling environments. Whether for mining, construction, or geotechnical applications, our DTH bits are designed to deliver optimal performance and longevity.

Choose SVE Drilling Tools for a reliable partner in DTH bits manufacturing, where quality, innovation, and customer-centricity converge to drive success in drilling operations. Trust us for cutting-edge solutions that elevate the efficiency and performance of your drilling endeavors.

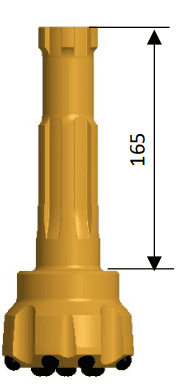

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
BR1 mm inch Holes Face Gauge (kg) Number
60 2.4 2 Ø10 x 3 Ø10 x 6 1.7 DB4060A2S01
60 3 2 Ø10 x 4 Ø10 x 6 2.0 DB4064A2S02

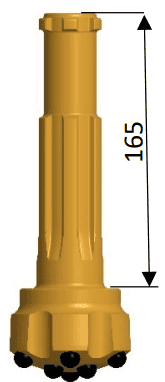

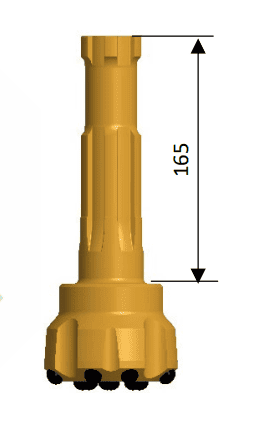

Face Design Diameter Flush Buttons Dia x Qty Weight Part
BR2 mm inch Holes Face Gauge (kg) Number
76 3 2 Ø9 x 4 Ø13 x 6 2.5 DB0176A2S01
76 3 2Ø11 x 4Ø12 x 62.5DB0176A2S02
76 3 2Ø11 x 4Ø12 x 62.5DB0176A2S03
76 3 2Ø10 x 4Ø11 x 62.5DB0176A2S04
80 3 1/7 2Ø11 x 4Ø12 x 63.0DB0180A2S05
89 3 1/2 2Ø11 x 6Ø12 x 73.0DB0189A2S06
95 3 1/2 2Ø11 x 6Ø12 x 63.5DB0195A2S07
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
BR2 mm inch Holes Face Gauge (kg) Number
702 3/42Ø10 x 4 Ø11 x 6 2.3 DB0176B2S08
76 3 2Ø11 x 4Ø12 x 62.5DB0176B2S11
85 3 1/3 2Ø11 x 4Ø12 x 63.0DB0189B2S13
90 3 1/2 2Ø10 x 4Ø12 x 73.5DB0195B2S14
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
BR2 mm inch Holes Face Gauge (kg) Number
702 3/42Ø10 x 5 Ø10 x 6 4.8 DB0176C2S15
76 3 2Ø12 x 5Ø12 x 63.5DB0176C2S16
76 3 2Ø11 x 5Ø11 x 62.5DB0176C2S17
86 3 2/5 2Ø11 x 6Ø11 x 73.0DB0180C2S18
95 3 3/4 2Ø12 x 6Ø12 x 73.5DB0195C2S19
Face Design Diameter Flush Buttons Dia x Qty Weight Part
BR3 mm inch Holes Face Gauge (kg) Number
9031/22 Ø13 x 4Ø13 x 95.0 DB0290A2S20
90 31/2 2Ø12 x 5Ø12 x 75.0DB0290A2S21
90 31/2 2Ø12 x 5Ø13 x 62.5DB0290A2S22
100 3 15/16 2Ø12 x 6Ø12 x 85.8DB02100A2S23
100 3 15/16 2Ø13 x 6Ø13 x 85.8DB02100A2S24
102 4 2Ø12 x 6Ø14 x 86.0DB02102A2S25
102 4 2Ø13 x 6Ø13 x 86.0DB02102A2S26
105 4 1/8 2Ø12 x 5Ø14 x 86.0DB02105A2S27
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
BR3 mm inch Holes Face Gauge (kg) Number
903 1/22Ø10 x 4 Ø11 x 6 5.0DB0290B2S28
90 3 1/2 2Ø10 x 6Ø12 x 65.0DB0290B2S29
95 3 3/4 2Ø10 x 6Ø12 x 65.5DB0295B2S30
95 3 3/4 2Ø11 x 5Ø12 x 75.5DB0295B2S31
100 3 15/ 16 2Ø12x 6Ø12 x 85.8DB02100B2S32
105 4 1/8 2Ø12x 6Ø14 x 86.0DB02100B2S33
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
BR3 mm inch Holes Face Gauge (kg) Number
902 3/42Ø10 x 4 Ø11 x 6 5.0 DB0290C2S34
95 3 1/2 2Ø11 x 5Ø12 x 75.5DB0295C2S35
100 3 15/ 16 2Ø12x 6Ø12 x 85.8DB02100C2S36
102 4 2Ø12x 6Ø14 x 86.0DB02102C2S37
105 4 1/8 2Ø12 x 6Ø14 x 86.5DB02105C2S38

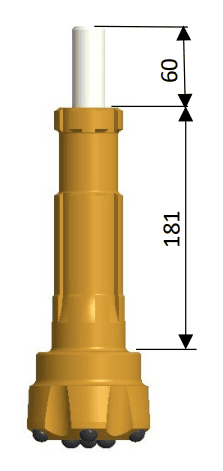

Face Design Diameter Flush Buttons Dia x Qty Weight Part
DHD3.5 mm inch Holes Face Gauge (kg) Number
9031/2 2Ø13 x 4 Ø13 x 95.0DB0390A2S39
9031/2 2Ø12 x 5 Ø12 x 75.0DB0390A2S40
9031/2 2Ø12 x 5 Ø13 x 62.5DB0390A2S41
1003 15/16 2Ø12 x 6 Ø12 x 85.8DB03100A2S42
1003 15/16 2Ø13 x 6 Ø13 x 85.8DB03100A2S42
1024 2Ø12 x 6 Ø14 x 86.0DB03102A2S44
1024 2Ø13 x 6 Ø13 x 86.0DB03102A2S45
1054 1/8 2Ø12 x 5 Ø14 x 86.0DB03105A2S46
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
DHD3.5 mm inch Holes Face Gauge (kg) Number
9031/2 2Ø13 x 5 Ø13 x 65.0DB0390B2S47
9031/2 2Ø13 x 5 Ø13 x 65.0DB0390B2B48
1003 15/16 2Ø13 x 6 Ø13 x 86.0DB03100B2S49
1003 15/16 2Ø12 x 6 Ø14 x 85.8DB03100B2S50
1024 2Ø11 x 6 Ø13 x 86.0DB03102B2S51
1024 2Ø12 x 6 Ø14 x 86.0DB03102B2S52
1054 1/8 2Ø12 x 7 Ø14 x 87.0DB03105B2S53
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 3.5 mm inch Holes Face Gauge (kg) Number
9031/2 2Ø12 x 6 Ø12 x 85.0DB0390C2B54
9031/2 2Ø12 x 6 Ø12 x 55.0DB0390C2B55
9031/2 2Ø12 x 6 Ø13 x 75.0DB0390C2S56
953 3/4 2Ø12 x 6 Ø13 x 75.3DB0395C2S57
1003 15/16 2Ø12 x 6 Ø14 x 86.0DB03100C2S59
1024 2Ø12 x 6 Ø14 x 86.2DB03100C2S60
1054 1/8 2Ø13 x 6 Ø14 x 86.5 DB03105C2S61
1154 1/2 2Ø13 x 7 Ø14 x 87.0DB03105C2S62

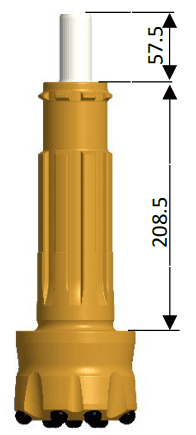

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 340 mm inch Holes Face Gauge (kg) Number
1054 1/8 2Ø12 x 6 Ø14 x 88.0DB04105A2S64
1084 1/4 2Ø12 x 6 Ø14 x 88.1DB04106A2S65
1104 1/3 2Ø12 x 6 Ø14 x 88.5DB04110A2S66
1154 1/2 2Ø13 x 6 Ø14 x 89.0DB04115A2S67
1154 1/2 2Ø13 x 7 Ø14 x 89.0DB04115A2B68
1214 5/7 2Ø13 x 8 Ø14 x 89.5DB04121A2S69
1275 2Ø14 x 8 Ø14 x 810DB04127A2S70
1275 2Ø14 x 8 Ø14 x 810DB04127A2B71
1305 1/8 2Ø14 x 6 Ø16 x 810.5DB04130A2S71
1405 1/2 2Ø14 x 8 Ø16 x 814.0DB04140A2S72
1506 2Ø16 x 8 Ø16 x 1017DB04150A2S73
1787 2Ø14 x 10 Ø16 x 1018DB04178A2S74

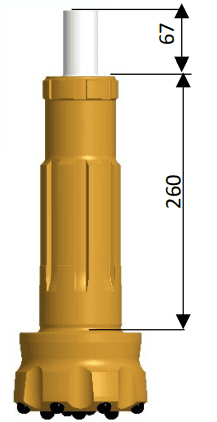

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 350 mm inch Holes Face Gauge (kg) Number
1254 15/16 2Ø14 x 7 Ø14 x 814DB05125A2S85
1275 2Ø14 x 7 Ø14 x 814.7DB05127A2S86
1305 1/8 2Ø14 x 8 Ø14 x 815DB05130A2S87
1405 1/2 2Ø14 x 10 Ø16 x 815DB05140A2S88
1465 3/4 2Ø14 x 11 Ø16 x 816.5DB05146A2S89
1526 2Ø16 x 10 Ø16 x 817DB05152A2S90
1656 1/2 2Ø16 x 11 Ø16 x 818.2DB05165A2S91
2038 2Ø16 x 16 Ø18 x 1036.3DB05203A2S92
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 350 mm inch Holes Face Gauge (kg) Number
1254 15/16 2Ø14 x 7 Ø14 x 814DB05125B2S93
1275 2Ø14 x 7 Ø14 x 814.7DB05127B2S94
1305 1/8 2Ø14 x 8 Ø14 x 815DB05130B2S95
1405 1/2 2Ø14 x 10 Ø16 x 815DB05140B2S96
1465 3/4 2Ø14 x 11 Ø16 x 816.5DB05146B2S97
1526 2Ø16 x 10 Ø16 x 817DB05152B2S98
1656 1/2 2Ø16 x 14 Ø16 x 1018.2DB05165B2S99
203 8 2Ø16 x 14 Ø16 x 1025DB05203B2S100
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 350 mm inch Holes Face Gauge (kg) Number
1275 2Ø14 x 7 Ø14 x 814.5DB05127C2S101
1405 1/2 2Ø14 x 8 Ø16 x 815DB05140C2S102
1405 1/2 2Ø16 x 8 Ø16 x 815DB05140C2B103
1465 3/4 2Ø16 x 8 Ø16 x 816DB05146C2B104
1506 2Ø16 x 8 Ø16 x 816.3DB05150C2B105

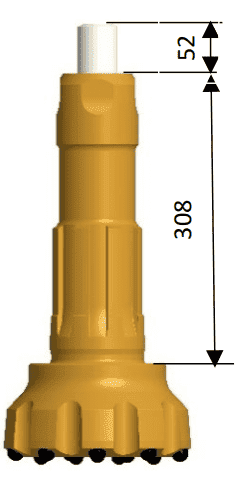

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 360 mm inch Holes Face Gauge (kg) Number
1526 2Ø16 x 10 Ø16 x 826DB06152A2S106
1566 1/8 2Ø16 x 10 Ø16 x 827DB06156A2S107
1656 1/2 3Ø16 x 10 Ø16 x 930DB06165A3S108
172 6 3/4 2Ø16 x 12 Ø16 x1031DB06172A2S109
1787 2Ø16 x 12 Ø18 x1033DB06178A2S110
180 7 2Ø16 x 13 Ø16 x1033.5DB06180A2S111
1857 2/7 2Ø16 x 13 Ø16 x1034DB06185A2S112
1907 1/2 2Ø16 x 14 Ø18 x1035DB06190A2S113
2007 7/8 2Ø16x10 Ø18 x1036DB06200A2S114
2038 2Ø16 x 16 Ø18 x1036.5DB06203A2S115
2168 1/2 2Ø16 x 16 Ø18 x1037DB06216A2S116
2168 1/2 3Ø16 x 18 Ø18x 937DB06216A3S117
2208 5/8 2Ø16 x 16 Ø18x 1040DB06220A2S118
2208 5/8 2Ø16 x 18 Ø18x 1040DB06220A2S119
2509 5/6 3Ø16 x 22 Ø18x 1240.5DB06250A2S120
25411 5/4 3Ø16 x 24 Ø18x 1245DB06254A2S121
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 360 mm inch Holes Face Gauge (kg) Number
152 6 2 Ø16 x 10 Ø16 x 8 26 DB06152B2S122
154 6 2 Ø16 x 10 Ø16 x 8 26.5 DB06154B2S123
165 6 1/2 2 Ø16 x 10 Ø16 x 10 30 DB06165B2S124
165 6 1/2 3 Ø16 x 10 Ø18 x 9 30 DB06165B3B125
170 6 2/3 2 Ø16 x 11 Ø16 x 8 31 DB06170B2S126
172 6 7/9 2 Ø16 x 13 Ø16 x 10 32 DB06172B2S127
178 7 2 Ø16 x 12 Ø16 x 10 33 DB06178B2S128
180 7 2 Ø16 x 12 Ø16 x 10 33.5 DB06180B2S129
185 7 2/7 2 Ø16 x 12 Ø16 x 10 34 DB06185B2S130
190 7 1/2 2 Ø16 x16 Ø16 x10 35 DB06190B2S131
200 7 7/8 2 Ø16x16 Ø16 x 10 36 DB06200B2S132
203 8 2 Ø16 x17 Ø18 x 10 36.5 DB06203B2S133
203 8 3 Ø16 x16 Ø18 x 9 36.5 DB06203B3S134
216 8 1/2 2 Ø16 x 16 Ø18 x 10 37 DB06216B2S135
220 8 5/8 2 Ø16 x 17 Ø18 x 10 40 DB06220B2S136
240 9 5/6 3 Ø16 x 22 Ø18 x 12 44.5 DB06240B2S137
254 11 4/5 3 Ø16 x 24 Ø18 x 12 45 DB06254B2S138
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 360 mm inch Holes Face Gauge (kg) Number
165 6 1/2 3 Ø16 x 12 Ø18 x 9 27 DB06165C2S139
170 6 2/3 3 Ø16 x 12 Ø16 x 12 30 DB06170C2S140
172 6 7/9 3 Ø16 x 12 Ø16 x 12 30.5 DB06172C2S141
178 7 3 Ø16 x 13 Ø16 x 12 33 DB06178C2S142
203 8 3 Ø16 x 16 Ø18 x 9 36 DB06203C2S143
216 8 1/2 3 Ø16 x 18 Ø18 x 9 37 DB06216C2S144
254 11 4/5 3 Ø16 x 18 Ø18 x 12 45 DB06254C2S145

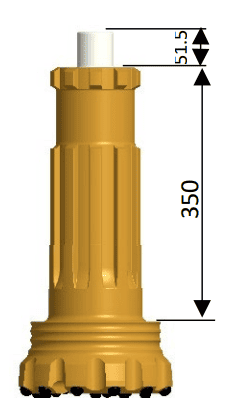

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 380 mm inch Holes Face Gauge (kg) Number
203 8 2 Ø16 x 15 Ø19 x 10 45 DB06203A2S146
203 8 2 Ø16 x 15 Ø19 x 12 45 DB06203A2S147
216 8 1/2 2 Ø16 x 16 Ø19 x 10 46.5 DB06216A2S148
219 8 5/8 2 Ø16 x 16 Ø19 x 10 47 DB06219A2S149
222 8 3/8 2 Ø16 x 16 Ø19 x 10 48 DB06222A2S150
225 8 7/8 2 Ø16 x 14 Ø19 x 10 49 DB06225A2S151
240 9 4/9 2 Ø16 x 19 Ø18 x 10 50 DB06240A2S152
250 9 5/6 2 Ø16x 20 Ø18 x 10 54 DB06250A2S153
254 10 2 Ø16 x 24 Ø18 x 12 54 DB06254A2S154
305 12 3 Ø16 x 27 Ø18 x 12 73 DB06305A3S155
311 12 1/4 3 Ø16 x 30 Ø18 x 12 75 DB06311A3S156
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 380 mm inch Holes Face Gauge (kg) Number
198 7 4/5 2 Ø16 x 18 Ø16 x 12 35 DB06198B3S157
203 8 2 Ø16 x 16 Ø18 x 10 45 DB06203B3S158
216 8 1/2 2 Ø16 x 16 Ø18 x 10 46 DB06216B3S159
219 8 5/8 2 Ø16 x 16 Ø18 x 10 46 DB06219B3S160
229 9 2 2 Ø16 x 18 Ø18 x 10 47 DB06229B3S161
241 9 1/2 2 Ø16 x 19 Ø18 x 10 51 DB06241B3S162
254 10 2 Ø16 x 20 Ø18 x 10 57 DB06242B3S163
267 10 1/2 3 Ø16 x 25 Ø18 x 12 58 DB06267B3S164
280 11 3 Ø16 x 26 Ø18 x 12 67 DB06268B3S165
305 12 3 Ø16 x 31 Ø18 x 12 68 DB06305B3S166
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
DHD 380 mm inch Holes Face Gauge (kg) Number
254 10 3 Ø16 x 15 Ø18 x 9 57 DB06254C3S168
300 12 3 Ø16 x 21 Ø18 x 9 68 DB06300C3S169
300 12 3 Ø19 x 09 Ø18 x 9 68 DB06300C3S170
305 12 3 Ø16 x 21 Ø18 x 9 69 DB06305C3S171
Flat Design Diameter Flush Buttons Dia x Qty Weight Part

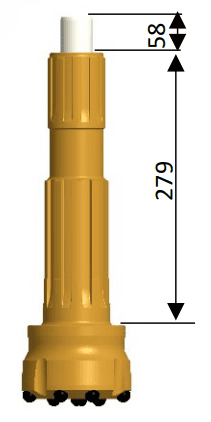

QL 40 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø12 x 6 Ø14 x 8 8.0 DB22105A2S172
110 4 1/3 2 Ø12 x 6 Ø14 x 8 8.5 DB22110A2S173
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB22115A2S174
115 4 1/2 2 Ø12 x 7 Ø16 x 7 9.0 DB22115A2S175
121 4 3/4 2 Ø13 x 7 Ø14 x 8 9.3 DB22121A2S176
127 5 2 Ø13 x 7 Ø16 x 8 9.7 DB22127A2S177
127 5 2 Ø13 x 7 Ø18 x 7 10 DB22127A2S178
130 5 1/8 2 Ø14 x 6 Ø14 x 8 10.5 DB22130A2S179
140 5 1/2 2 Ø14 x 8 Ø16 x 8 14.0 DB22140A2S180
150 6 2 Ø14 x 9 Ø16 x 8 17 DB22150A2S181
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
QL 40 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø12 x 6 Ø14 x 8 8.0 DB22105B2S182
110 4 1/3 2 Ø12 x 6 Ø14 x 8 8.5 DB22110B2S183
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB22115B2S184
115 4 1/2 2 Ø12 x 7 Ø16 x 7 9.0 DB22115B2S185
121 4 3/4 2 Ø12 x 7 Ø14 x 8 9.3 DB22121B2S186
127 5 2 Ø13 x 7 Ø16 x 8 9.7 DB22127B2S187
127 5 2 Ø13 x 7 Ø18 x 7 10 DB22127B2S188
130 5 1/8 2 Ø14 x 6 Ø14 x 8 10.5 DB22130B2S189
140 5 1/2 2 Ø14 x 8 Ø16 x 8 14.0 DB22140B2S190
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
QL 40 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø12 x 6 Ø14 x 8 8.0 DB22105C2S191
110 4 1/3 2 Ø12 x 6 Ø14 x 7 8.5 DB22110C2S192
115 4 ½ 2 Ø14 x 7 Ø14 x 8 9.0 DB22115C2S193
121 4 ¾ 2 Ø14 x 8 Ø14 x 6 9.3 DB22121C2S194
127 5 2 Ø14 x 8 Ø14 x 8 9.7 DB22127C2S195
130 5 1/8 2 Ø14 x 8 Ø14 x 8 10 DB22130C2S196

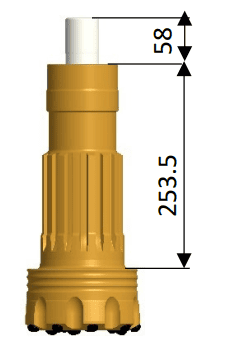

Face Design Diameter Flush Buttons Dia x Qty Weight Part
QL60 mm inch Holes Face Gauge (kg) Number
152 6 2 Ø16 x 8 Ø16 x 9 25 DB24152A2S197
156 6 1/8 2 Ø16 x 10 Ø16 x 8 26 DB24156A2S198
159 6 1/4 2 Ø16 x 10 Ø18 x 8 26.5 DB24159A2S199
165 6 1/2 2 Ø16 x 10 Ø16 x 10 28 DB24165A2S200
165 6 1/2 2 Ø16 x 10 Ø18 x 8 28 DB24165A2S201
172 6 3/4 2 Ø16 x 10 Ø18 x 10 29 DB24172A2S202
178 7 2 Ø16 x 12 Ø16 x 10 30 DB24178A2S203
178 7 2 Ø16 x 12 Ø18 x 9 30 DB24178A2S204
190 7 1/2 2 Ø16 x 14 Ø16 x 10 30 DB24190A2S205
203 8 2 Ø16 x 14 Ø16 x 10 32 DB24203A2S206
216 8 1/2 2 Ø16 x 16 Ø18 x 10 33 DB24216A2S216
219 8 5/8 2 Ø16 x 16 Ø18 x 10 33.5 DB24219A2S219
220 8 2/3 2 Ø16 x 16 Ø18 x 10 34 DB24220A2S220
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
QL 60 mm inch Holes Face Gauge (kg) Number
152 6 2 Ø16 x 10 Ø18 x 8 25 DB24152C2S221
156 6 1/8 2 Ø16 x 10 Ø18 x 8 26 DB24156C2S222
159 6 1/4 2 Ø16 x 10 Ø18 x 8 26.5 DB24159C2S223
165 6 1/2 2 Ø16 x 10 Ø18 x 8 28 DB24165C2S224
165 6 1/2 2 Ø16 x 10 Ø18 x 8 28 DB24165C2S225
172 6 3/4 2 Ø16 x 11 Ø18 x 8 29 DB24172C2S226
178 7 2 Ø16 x 11 Ø18 x 10 30 DB24178C2S227
178 7 2 Ø16 x 12 Ø18 x 9 30 DB24178C2S228
190 7 1/2 2 Ø16 x 14 Ø16 x 10 30 DB24190C2S229
203 8 2 Ø16 x 16 Ø16 x 10 32 DB24203C2S230
216 8 1/2 2 Ø16 x 16 Ø18 x 9 33 DB24216C2S231
220 8 2/3 2 Ø16 x 16 Ø18 x 10 35 DB24220C2S232
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
QL 60 mm inch Holes Face Gauge (kg) Number
152 6 2 Ø16 x 10 Ø18 x 8 25 DB24152C2S221
156 6 1/8 2 Ø16 x 10 Ø18 x 8 26 DB24156C2S222
159 6 1/4 2 Ø16 x 10 Ø18 x 8 26.5 DB24159C2S223
165 6 1/2 2 Ø16 x 10 Ø18 x 8 28 DB24165C2S224
165 6 1/2 2 Ø16 x 10 Ø18 x 8 28 DB24165C2S225
172 6 3/4 2 Ø16 x 11 Ø18 x 8 29 DB24172C2S226
178 7 2 Ø16 x 11 Ø18 x 10 30 DB24178C2S227
178 7 2 Ø16 x 12 Ø18 x 9 30 DB24178C2S228
190 7 1/2 2 Ø16 x 14 Ø16 x 10 30 DB24190C2S229
203 8 2 Ø16 x 16 Ø16 x 10 32 DB24203C2S230
216 8 1/2 2 Ø16 x 16 Ø18 x 9 33 DB24216C2S231
220 8 2/3 2 Ø16 x 16 Ø18 x 10 35 DB24220C2S232
Flat Design Diameter Flush Buttons Dia x Qty Weight Part
QL 80 mm inch Holes Face Gauge (kg) Number
203 8 2 Ø16 x 15 Ø19 x 10 45 DB25203A2S233
216 8 1/2 2 Ø16 x 16 Ø19 x 10 46.5 DB25216A2S234
219 8 5/8 2 Ø16 x 16 Ø19 x 10 47 DB25219A2S233
222 8 3/8 2 Ø16 x 16 Ø19 x 10 48 DB25222A2S234
225 8 7/8 2 Ø16 x 14 Ø19 x 10 49 DB25225A2S235
240 9 4/9 2 Ø16 x 19 Ø18 x 10 50 DB25240A2S236
250 9 5/6 2 Ø16 x 20 Ø18 x 10 54 DB25250A2S237
254 10 2 Ø16 x 24 Ø18 x 12 54 DB25254A2S238
305 12 3 Ø16 x 27 Ø18 x 12 73 DB25305A3S239
311 12 1/4 3 Ø16 x 30 Ø18 x 12 75 DB25311A3S240

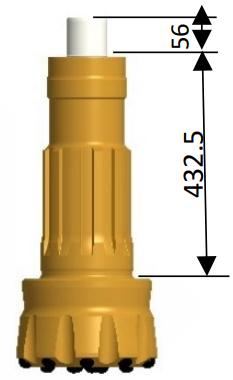

Concave Design Diameter Flush Buttons Dia x Qty Weight Part
QL 80 mm inch Holes Face Gauge (kg) Number
190 7.5 3 Ø16 x 12 Ø18 x 9 48 DB24190B3S241
203 8 3 Ø16 x 14 Ø18 x 9 52.5 DB24203B3S242
200 8 3 Ø16 x 14 Ø18 x 8 52 DB24200B3S243
225 8.5 2 Ø16 x 14 Ø18 x 10 53 DB24225B3S244
250 9 5/6 3 Ø16 x 20 Ø18 x 12 54.5 DB24250B3S245
254 10 3 Ø16 x 21 Ø18 x 12 56 DB24254B3S246
274 10 5/8 3 Ø16 x 25 Ø18 x 12 60 DB24274B3S247
305 12 3 Ø16 x 29 Ø16 x 12 65 DB24305B2S248
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
QL 80 mm inch Holes Face Gauge (kg) Number
165 6 1/2 3 Ø16 x 12 Ø18 x 9 30 DB24165C3S249
172 6 7/9 3 Ø16 x 10 Ø16 x 12 27 DB24172C3S250
203 8 3 Ø16 x 16 Ø16 x 9 36 DB24203C3S251
216 8 1/2 2 Ø16 x 18 Ø16 x 9 37 DB24216C3S252
250 9 5/6 3 Ø18 x 18 Ø18 x 12 44 DB24250C3S253

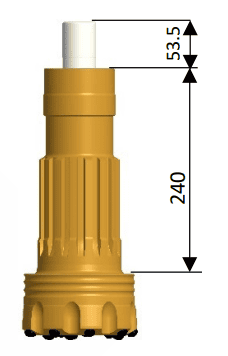

Face Design Diameter Flush Buttons Dia x Qty Weight Part
QL50 mm inch Holes Face Gauge (kg) Number
125 5 2 Ø14 x 7 Ø14 x 8 14 DB23125A2S254
127 5 2 Ø14 x 7 Ø14 x 8 14.5 DB23127A2S255
130 5 1/8 3 Ø14 x 9 Ø14 x 9 15 DB24130A3S256
140 5 1/2 2 Ø16 x 8 Ø16 x 8 15.5 DB24140A2S257
146 5 3/4 2 Ø16 x 8 Ø16 x 8 16 DB24146A2S258
152 6 2 Ø16 x 10 Ø16 x 8 16.5 DB24152A2S259
165 6 1/2 2 Ø16 x 10 Ø16 x 8 17 DB24165A2S260
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
QL 50 mm inch Holes Face Gauge (kg) Number
125 5 2 Ø14 x 7 Ø14 x 8 14 DB23125B2S261
127 5 2 Ø14 x 7 Ø14 x 8 14.5 DB24127B2S262
130 5 1/8 3 Ø14 x 9 Ø16 x 9 15 DB24137B3S263
140 5 1/2 2 Ø16 x 8 Ø16 x 8 15.5 DB24140B2S264
146 5 3/4 2 Ø16 x 8 Ø16 x 8 16 DB24146B2S265
152 6 2 Ø16 x 10 Ø16 x 8 16.5 DB24152B2S266
165 6 1/2 2 Ø16 x 10 Ø16 x 10 17 DB24165B2S267
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
QL 50 mm inch Holes Face Gauge (kg) Number
127 5 2 Ø14 x 7 Ø14 x 8 14.5 DB24127C2S268
130 5 1/8 3 Ø14 x 10 Ø14 x 9 15 DB24130C2S269
134 5 2/7 3 Ø14 x 10 Ø14 x 9.5 15.5 DB24134C2S270
140 5 1/2 2 Ø16 x 8 Ø16 x 8 15.5 DB24140C2S271
140 5 1/2 2 Ø14 x 10 Ø16 x 9 16 DB24140C2S272
146 5 3/4 2 Ø16 x 10 Ø16 x 8 16.5 DB24146C2S273
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
QL 50 mm inch Holes Face Gauge (kg) Number
127 5 2 Ø14 x 7 Ø14 x 8 14.5 DB24127C2S274
130 5 1/8 3 Ø14 x 10 Ø14 x 9 15 DB24130C2S275
134 5 2/7 3 Ø14 x 10 Ø14 x 9.5 15.5 DB24134C2S276
140 5 1/2 2 Ø16 x 8 Ø16 x 8 15.5 DB24140C2S277
140 5 1/2 2 Ø14 x 10 Ø16 x 9 16 DB24140C2S278
146 5 3/4 2 Ø16 x 10 Ø16 x 8 16.5 DB24146C2S279
Flat Design Diameter Flush Buttons Dia x Qty Weight Part
SD4 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø14 x 8 Ø12 x 6 8 DB10105A2S280
110 4 1/3 2 Ø14 x 8 Ø14 x 9 8.5 DB10110A2S281
115 4 1/2 2 Ø14 x 8 Ø14 x 9 9 DB10115A2S282
121 4 3/4 2 Ø14 x 8 Ø16 x 8 9.3 DB10121A2S283
127 5 2 Ø14 x 8 Ø16 x 9 9.5 DB10127A2S284
130 5 1/8 2 Ø14 x 8 Ø16 x 8 10 DB10130A2S285
165 6 1/2 2 Ø16 x 8 Ø16 x 8 26 DB10165A2S286
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
SD 4 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø12 x 6 Ø14 x 8 7.8 DB10105B2S287
110 4 1/3 2 Ø12 x 6 Ø14 x 8 8.3 DB10110B2S288
115 4 1/2 2 Ø12 x 6 Ø14 x 8 8.7 DB10115B2S289
127 5 2 Ø14 x 7 Ø14 x 8 9.2 DB10127B2S290
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
SD4 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø12 x 6 Ø14 x 8 8.0 DB10105C2S292
110 4 1/3 2 Ø12 x 6 Ø14 x 8 8.5 DB10110C2S293
115 4 1/2 2 Ø12 x 7 Ø14 x 8 9.0 DB10115C2S294
127 5 2 Ø14 x 8 Ø14 x 8 9.5 DB10127C2S295
130 5 1/8 2 Ø14 x 8 Ø14 x 8 10.0 DB10130C2S296

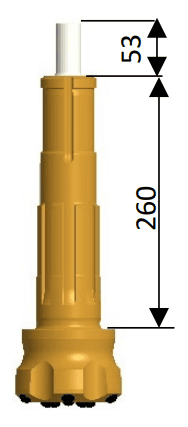

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
SD5 mm inch Holes Face Gauge (kg) Number
125 5 2 Ø14 x 8 Ø14 x 8 15.0 DB11125A2S297
127 5 2 Ø14 x 8 Ø14 x 8 15.5 DB11127A2S298
140 5 1/2 2 Ø16 x 8 Ø16 x 8 16.0 DB11140A2S299
146 5 3/4 2 Ø16 x 8 Ø16 x 8 16.5 DB11146A2S300
152 6 2 Ø16 x 8 Ø16 x 10 17.0 DB11152A2S301
165 6 1/2 2 Ø16 x 8 Ø16 x 10 17.5 DB11165A2S302
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
SD5 mm inch Holes Face Gauge (kg) Number
125 5 2 Ø14 x 7 Ø14 x 8 15.0 DB11125B2S303
127 5 2 Ø14 x 8 Ø14 x 8 15.5 DB11127B2S304
140 5 1/2 2 Ø16 x 8 Ø16 x 8 16.0 DB11140B2S305
146 5 3/4 2 Ø16 x 7 Ø16 x 7 16.5 DB11146B2S306
152 6 2 Ø16 x 10 Ø16 x 8 17.0 DB11152B2S307
165 6 1/2 2 Ø16 x 10 Ø16 x 8 17.5 DB11165B2S308
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
SD5 mm inch Holes Face Gauge (kg) Number
125 5 2 Ø14 x 7 Ø14 x 8 15.0 DB11125C2S303
127 5 2 Ø14 x 8 Ø14 x 8 16.0 DB11127B2S304
140 5 1/2 2 Ø16 x 8 Ø16 x 8 16.5 DB11140B2S305
146 5 3/4 2 Ø16 x 7 Ø16 x 7 6.8 DB11146B2S306

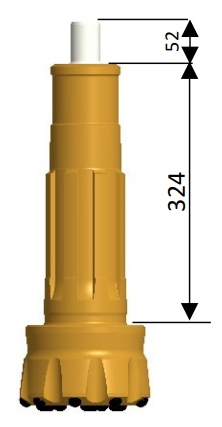

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
SD6 mm inch Holes Face Gauge (kg) Number
9031/2 2Ø13 x 4 Ø13 x 95.0DB0390A2S39
152 6 2 Ø16 x 10 Ø16 x 8 24.0 DB12152A2S307
156 6 1/8 2 Ø16 x 10 Ø16 x 8 26.0 DB12156A2S308
165 6 1/2 2 Ø16 x 10 Ø16 x 9 26.5 DB12165A2S309
172 6 3/4 2 Ø16 x 10 Ø16 x 9 27.0 DB12172A2S310
178 7 2 Ø16 x 13 Ø16 x 10 28.0 DB12178A2S311
190 7 1/2 2 Ø16 x 14 Ø16 x 10 30.0 DB12190A2S312
200 7 7/8 2 Ø16 x 14 Ø16 x 10 31.0 DB12200A2S313
203 8 2 Ø16 x 16 Ø18 x 10 32.0 DB12203A2S314
216 8 1/2 2 Ø16 x 16 Ø18 x 10 33.0 DB12216A2S315
216 8 1/2 2 Ø16 x 16 Ø18 x 10 33.0 DB12216A2S316
254 10 2 Ø16 x 20 Ø18 x 10 40.0 DB12254A2S317
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
SD6 mm inch Holes Face Gauge (kg) Number
152 6 2 Ø16 x 10 Ø16 x 8 24.0 DB12152C2S326
165 6 1/2 2 Ø16 x 10 Ø16 x 10 26.0 DB12156C2S327
172 6 3/4 2 Ø16 x 10 Ø16 x 10 27.0 DB12172C2S328
178 7 2 Ø16 x 13 Ø16 x 10 28.0 DB12178 C2S329
203 8 2 Ø16 x 16 Ø18 x 10 32.0 DB12203C2S330
216 8 1/2 2 Ø16 x 16 Ø18 x 10 33.0 DB12216C2S331

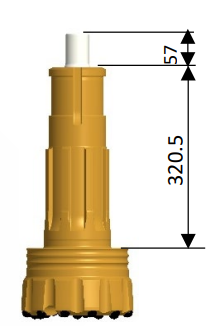

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
SD8 mm inch Holes Face Gauge (kg) Number
200 6 2 Ø16 x 15 Ø18 x 10 40.0 DB13200A2S332
203 8 2 Ø16 x 16 Ø18 x 10 41.0 DB13203A2S333
203 8 3/5 3 Ø16 x 9 Ø18 x 9 41.0 DB13203A3S334
216 8 1/2 2 Ø16 x 10 Ø18 x 10 42.0 DB13216A2S335
219 8 5/8 2 Ø16 x 13 Ø18 x 10 44.0 DB13219A2S336
222 8 3/4 2 Ø16 x 14 Ø18 x 10 45.0 DB13222A2S337
225 8 7/8 2 Ø16 x 14 Ø18 x 10 47.0 DB13225A2S338
240 9 4/9 2 Ø16 x 16 Ø18 x 10 50.0 DB13240A2S339
254 10 2 Ø16 x 16 Ø18 x 10 51.0 DB13254A2S340
292 11 1/2 3 Ø16 x 16 Ø18 x 12 55.0 DB13292A2S341
300 11 4/5 3 Ø16 x 20 Ø18 x 18 59.0 DB13300A2S342
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
SD6 mm inch Holes Face Gauge (kg) Number
200 7 7/8 2 Ø16 x 15 Ø18 x 10 41.0 DB13200B2S343
216 8 1/2 3 Ø16 x 16 Ø18 x 10 42.0 DB13203B3S345
216 8 1/2 2 Ø16 x 10 Ø18 x 12 42.0 DB13216B2S346
222 8 3/4 2 Ø16 x 16 Ø18 x 10 45.0 DB13219B2S347
241 9 1/2 2 Ø16 x 19 Ø18 x 10 50.0 DB13222B2S348
251 9 7/8 2 Ø16 x 20 Ø18 x 10 51.0 DB13225B2S349
254 10 2 Ø16 x 20 Ø18 x 10 54.0 DB13240B2S350
270 10 5/8 3 Ø16 x 25 Ø18 x 12 68.0 DB13254B2S351
280 11 3/8 3 Ø16 x 28 Ø18 x 12 71.0 DB13292B2S352
305 12 3 Ø16 x 30 Ø18 x 18 75.0 DB13300B2S353
311 11 1/4 3 Ø16 x 31 Ø18 x 12 75.0 DB13300B2S353
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
SD8 mm inch Holes Face Gauge (kg) Number
200 6 2 Ø16 x 15 Ø18 x 10 40.0 DB13200C2S354
203 8 2 Ø16 x 16 Ø18 x 10 41.0 DB13203C2S355
216 8 1/2 2 Ø16 x 10 Ø18 x 10 42.0 DB13216C2S356
216 8 1/2 2 Ø16 x 10 Ø18 x 10 42.0 DB13216C2S357
222 8 3/4 2 Ø16 x 14 Ø18 x 10 45.0 DB13222C2S358
241 9 4/9 2 Ø16 x 16 Ø18 x 10 50.0 DB13241C2S359
251 10 2 Ø16 x 16 Ø18 x 10 51.0 DB13251C2S360
254 11 1/2 3 Ø16 x 16 Ø18 x 12 55.0 DB13254C2S361
270 11 4/5 3 Ø16 x 20 Ø18 x 18 59.0 DB13270C2S362
300 11 4/5 3 Ø16 x 20 Ø18 x 18 59.0 DB13300C2S363

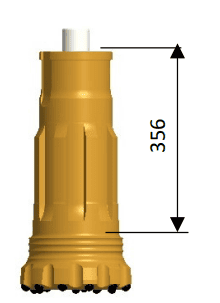

Convex Design Diameter Flush Buttons Dia x Qty Weight Part
SD10 mm inch Holes Face Gauge (kg) Number
200 6 2 Ø16 x 15 Ø18 x 10 40.0 DB13200A2S332
203 8 2 Ø16 x 16 Ø18 x 10 41.0 DB13203A2S333
203 8 3 Ø16 x 9 Ø18 x 9 41.0 DB13203A3S334
216 8 1/2 2 Ø16 x 10 Ø18 x 10 42.0 DB13216A2S335
219 8 5/8 2 Ø16 x 13 Ø18 x 10 44.0 DB13219A2S336
222 8 3/4 2 Ø16 x 14 Ø18 x 10 45.0 DB13222A2S337
225 8 7/8 2 Ø16 x 14 Ø18 x 10 47.0 DB13225A2S338
240 9 4/9 2 Ø16 x 16 Ø18 x 10 50.0 DB13240A2S339
254 10 2 Ø16 x 16 Ø18 x 10 51.0 DB13254A2S340
292 11 1/2 3 Ø16 x 16 Ø18 x 12 55.0 DB13292A2S341
300 11 4/5 3 Ø16 x 20 Ø18 x 18 59.0 DB13300A2S342
251 10 2 Ø16 x 16 Ø18 x 10 51.0 DB14251A2S364
254 11 1/2 3 Ø16 x 16 Ø18 x 12 55.0 DB14254A2S365
270 11 4/5 3 Ø16 x 20 Ø18 x 18 59.0 DB14270A2S366
300 11 4/5 3 Ø16 x 20 Ø18 x 18 59.0 DB14300A2S367
Face Design Diameter Flush Buttons Dia x Qty Weight Part
M30 mm inch Holes Face Gauge (kg) Number
90 3 1/2 2 Ø13 x 4 Ø13 x 9 5.0 DB1690A2S368
90 3 1/2 2 Ø12 x 5 Ø13 x 6 2.5 DB1690A2S370
100 3 15/16 2 Ø12 x 6 Ø12 x 8 5.8 DB16100A2S371
100 3 15/16 2 Ø13 x 6 Ø13 x 8 5.8 DB16100A2S372
102 4 2 Ø12 x 6 Ø14 x 8 6.0 DB16102A2S373
102 4 2 Ø13 x 6 Ø13 x 8 6.0 DB16102A2S374
105 4 1/8 2 Ø12 x 5 Ø14 x 8 6.0 DB16105A2S375
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
M30 mm inch Holes Face Gauge (kg) Number
90 3 1/2 2 Ø13 x 5 Ø13 x 6 5.0 DB1690B2S376
90 3 1/2 2 Ø13 x 5 Ø13 x 6 5.0 DB1690B2B377
100 3 15/16 2 Ø13 x 6 Ø13 x 8 6.0 DB16100B2S378
100 3 15/16 2 Ø12 x 6 Ø14 x 8 5.8 DB16100B2S379
102 4 2 Ø11 x 6 Ø13 x 8 6.0 DB16102B2S380
102 4 2 Ø12 x 6 Ø14 x 8 6.0 DB16102B2S381
105 4 1/8 2 Ø12 x 7 Ø14 x 8 7.0 DB16105B2S382
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
M30 mm inch Holes Face Gauge (kg) Number
90 3 1/2 2 Ø12 x 6 Ø12 x 8 5.0 DB1690C2S383
90 3 1/2 2 Ø12 x 6 Ø12 x 5 5.0 DB1690C2S384
90 3 1/2 2 Ø12 x 6 Ø13 x 7 5.0 DB1690C2S385
95 3 3/4 2 Ø12 x 6 Ø13 x 7 5.3 DB1695C2S386
100 3 15/16 2 Ø12 x 6 Ø14 x 8 6.0 DB16100C2S387
102 4 2 Ø12 x 6 Ø14 x 8 6.2 DB16100C2S388
105 4 1/8 2 Ø13 x 6 Ø14 x 8 6.5 DB16105C2S389
115 4 1/2 2 Ø13 x 7 Ø14 x 8 7.0 DB16105C2S390

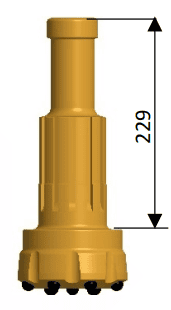

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
M40 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø12 x 6 Ø14 x 8 8.0 DB17300A2S391
108 4 1/4 2 Ø12 x 6 Ø14 x 8 8.1 DB17108A2S392
110 4 1/3 2 Ø12 x 6 Ø14 x 8 8.5 DB17110A2S393
115 4 1/2 2 Ø13 x 6 Ø14 x 8 9.0 DB17115A2S394
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB17115A2S395
121 4 5/7 2 Ø13 x 8 Ø14 x 8 9.5 DB17121A2S396
127 5 2 Ø14 x 8 Ø14 x 8 10 DB17127A2S397
127 5 2 Ø14 x 8 Ø14 x 8 10 DB17127A2S398
130 5 1/8 2 Ø14 x 6 Ø16 x 8 10.5 DB17130A2S399
140 5 1/2 2 Ø14 x 8 Ø16 x 8 14.0 DB17140A2S400
150 6 2 Ø16 x 8 Ø16 x 10 17 DB17150A2S401
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
M40 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø12 x 7 Ø14 x 8 8.0 DB17150B2S402
108 4 1/4 2 Ø12 x 6 Ø14 x 8 8.1 DB17108B2S403
110 4 1/3 2 Ø12 x 6 Ø14 x 8 8.5 DB17110B25404
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB17115B2S405
115 4 1/2 2 Ø12 x 7 Ø14 x 8 9.0 DB17115B2S406
121 4 5/7 2 Ø13 x 7 Ø14 x 8 9.5 DB17121B2S407
127 5 2 Ø14 x 6 Ø14 x 8 10 DB17127B2S408
130 5 1/8 2 Ø13 x 11 Ø14 x 9 10.5 DB17130B2S409
140 5 1/2 2 Ø16 x 7 Ø16 x 8 14.0 DB17140B2S410
152 6 2 Ø14 x 10 Ø16 x 8 17 DB17150B2S411
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
M40 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø13 x 7 Ø13 x 7 8.0 DB17105C2S412
110 4 1/3 2 Ø13 x 7 Ø14 x 7 8.5 DB17110C2S413
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB17115C2S414
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB17115C2S415
121 4 5/7 2 Ø13 x 7 Ø14 x 8 9.5 DB17121C2S416
127 5 2 Ø14 x 8 Ø14 x 8 10 DB14127C2S417
127 5 2 Ø14 x 8 Ø14 x 8 10 DB17127C2S418
130 5 1/8 2 Ø14 x 6 Ø16 x 8 10.5 DB17130C2S419
140 5 1/2 2 Ø14 x 8 Ø16 x 8 14.0 DB17140C2S420
152 6 2 Ø16 x 8 Ø16 x 10 17 DB17150C2S421

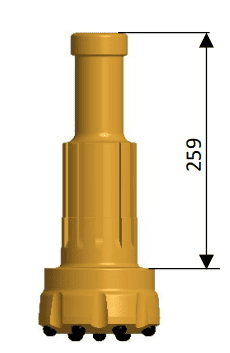

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
M50 mm inch Holes Face Gauge (kg) Number
125 4 15/16 2 Ø14 x 7 Ø14 x 8 14 DB18125A2S422
127 5 2 Ø14 x 7 Ø14 x 8 14.7 DB18127A2S423
130 5 1/8 2 Ø14 x 8 Ø14 x 8 15 DB18130A2S424
140 5 1/2 2 Ø14 x 10 Ø16 x 8 15 DB18140A2S425
146 5 3/4 2 Ø14 x 11 Ø16 x 8 16.5 DB18146A2S426
152 6 2 Ø16 x 10 Ø16 x 8 17 DB18152A2S427
165 6 1/2 2 Ø16 x 11 Ø16 x 8 18.2 DB18165A2S428
203 8 2 Ø16 x 16 Ø18 x 10 36.3 DB18203A2S429
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
M50 mm inch Holes Face Gauge (kg) Number
125 4 15/16 2 Ø14 x 7 Ø14 x 8 14 DB18125B2S430
127 5 2 Ø14 x 7 Ø14 x 8 14.7 DB08127B2S431
130 5 1/8 2 Ø14 x 8 Ø14 x 8 15 DB18130B2S432
140 5 1/2 2 Ø14 x 10 Ø16 x 8 15 DB18140B2S433
146 5 3/4 2 Ø14 x 11 Ø16 x 8 16.5 DB18146B2S434
152 6 2 Ø16 x 10 Ø16 x 8 17 DB18152B2S435
165 6 1/2 2 Ø16 x 14 Ø16 x 10 18.2 DB18165B2S436
203 8 2 Ø16 x 14 Ø16 x 10 25 DB18203B2S437
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
M50 mm inch Holes Face Gauge (kg) Number
127 5 2 Ø14 x 7 Ø14 x 7 14.5 DB18127C2S438
140 5 1/2 2 Ø14 x 8 Ø16 x 8 15 DB18140C2S439
140 5 1/2 2 Ø16 x 8 Ø16 x 8 15 DB18140C2B440
146 5 3/4 2 Ø16 x 8 Ø16 x 8 16 DB18146C2B441
150 6 2 Ø16 x 8 Ø16 x 8 16.3 DB18150C2B442

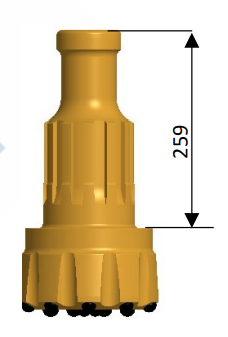

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
M60 mm inch Holes Face Gauge (kg) Number
152 6 2 Ø16 x 10 Ø16 x 8 26 DB19152A2S443
156 6 1/8 2 Ø16 x 10 Ø16 x 8 27 DB19156A2S444
165 6 1/2 3 Ø16 x 10 Ø16 x 9 30 DB19165A3S445
172 6 3/4 2 Ø16 x 12 Ø16 x 10 31 DB19172A2S446
178 7 2 Ø16 x 12 Ø18 x 10 33 DB19178A2S447
180 7 2 Ø16 x 13 Ø16 x 10 33.5 DB19180A2S448
185 7 2/7 2 Ø16 x 13 Ø16 x 10 34 DB19185A2S449
190 7 1/2 2 Ø16 x 14 Ø18 x 10 35 DB19190A2S450
200 7 7/8 2 Ø16 x 10 Ø18 x 10 36 DB19200A2S451
203 8 2 Ø16 x 16 Ø18 x 10 36.5 DB19203A2S452
216 8 1/2 2 Ø16 x 16 Ø18 x 10 37 DB19216A2S453
216 8 1/2 3 Ø16 x 18 Ø18 x 9 37 DB19216A3S454
220 8 5/8 2 Ø16 x 16 Ø18 x 10 40 DB19220A2S456
220 8 5/8 2 Ø16 x 18 Ø18 x 10 40 DB19220A2S457
250 9 5/6 3 Ø16 x 22 Ø18 x 12 44.5 DB19250A2S458
254 11 4/5 3 Ø16 x 24 Ø18 x 12 45 DB19254A2S459
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
M60 mm inch Holes Face Gauge (kg) Number
9031/2 2Ø13 x 4 Ø13 x 95.0DB0390A2S39
152 6 2 Ø16 x 10 Ø16 x 8 26 DB19152B2S460
154 6 2 Ø16 x 10 Ø16 x 8 26.5 DB19154B2S461
165 6 1/2 2 Ø16 x 10 Ø16 x 10 30 DB19165B2S462
165 6 1/2 3 Ø16 x 10 Ø18 x 9 30 DB19165B3B463
170 6 2/3 2 Ø16 x 11 Ø16 x 8 31 DB19170B2S464
172 6 7/9 2 Ø16 x 13 Ø16 x 10 32 DB19172B2S465
178 7 2 Ø16 x 12 Ø16 x 10 33 DB19178B2S466
180 7 2 Ø16 x 12 Ø16 x 10 33.5 DB19180B2S477
185 7 2/7 2 Ø16 x 12 Ø16 x 10 34 DB19185B2S478
190 7 1/2 2 Ø16 x 16 Ø16 x 10 35 DB19190B2S479
200 7 7/8 2 Ø16 x 16 Ø16 x 10 36 DB19200B2S480
203 8 2 Ø16 x 17 Ø18 x 10 36.5 DB19203B2S481
203 8 3 Ø16 x 16 Ø18 x 9 36.5 DB19203B3S482
216 8 1/2 2 Ø16 x 16 Ø18 x 10 37 DB19216B2S483
220 8 5/8 2 Ø16 x 17 Ø18 x 10 40 DB19220B2S484
240 9 5/6 3 Ø16 x 22 Ø18 x 12 44.5 DB19240B2S485
254 11 4/5 3 Ø16 x 24 Ø18 x 12 45 DB19254B2S486
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
M60 mm inch Holes Face Gauge (kg) Number
165 6 1/2 3 Ø16 x 12 Ø18 x 9 27 DB19165C2S487
170 6 2/3 3 Ø16 x 12 Ø16 x 12 30 DB19170C2S488
172 6 7/9 3 Ø16 x 12 Ø16 x 12 30.5 DB19172C2S489
178 7 3 Ø16 x 13 Ø16 x 12 33 DB19178C2S490
203 8 3 Ø16 x 16 Ø18 x 9 36 DB19203C2S491
216 8 1/2 3 Ø16 x 18 Ø18 x 9 37 DB19216C2S492
254 11 4/5 3 Ø16 x 18 Ø18 x 12 45 DB19254C2S493

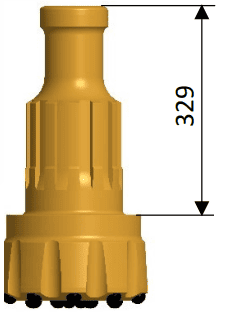

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
M80 mm inch Holes Face Gauge (kg) Number
203 8 2 Ø16 x 15 Ø19 x 10 45 DB21203A2S494
203 8 2 Ø16 x 15 Ø19 x 12 45 DB2103A2S1495
216 8 1/2 2 Ø16 x 16 Ø19 x 10 46.5 DB21216A2S496
219 8 5/8 2 Ø16 x 16 Ø19 x 10 47 DB21219A2S497
222 8 3/8 2 Ø16 x 16 Ø19 x 10 48 DB21222A2S498
225 8 7/8 2 Ø16 x 14 Ø19 x 10 49 DB21225A2S499
240 9 4/9 2 Ø16 x 19 Ø18 x 10 50 DB21240A2S501
250 9 5/6 2 Ø16 x 20 Ø18 x 10 54 DB21250A2S502
254 10 2 Ø16 x 24 Ø18 x 12 54 DB21254A2S503
305 12 3 Ø16 x 27 Ø18 x 12 73 DB21305A3S504
311 12 1/4 3 Ø16 x 30 Ø18 x 12 75 DB21311A3S505
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
M80 mm inch Holes Face Gauge (kg) Number
198 7 4/5 2 Ø16 x 18 Ø16 x 12 35 DB21198B3S506
203 8 2 Ø16 x 16 Ø18 x 10 45 DB21203B3S507
216 8 1/2 2 Ø16 x 16 Ø18 x 10 46 DB21216B3S508
219 8 5/8 2 Ø16 x 16 Ø18 x 10 46 DB21219B3S509
229 9 2 2 Ø16 x 18 Ø18 x 10 47 DB21229B3S510
241 9 1/2 2 Ø16 x 19 Ø18 x 10 51 DB21241B3S511
254 10 2 Ø16 x 20 Ø18 x 10 57 DB21242B3S512
267 10 1/2 3 Ø16 x 25 Ø18 x 12 58 DB21267B3S513
280 11 3 Ø16 x 26 Ø18 x 12 67 DB21268B3S514
305 12 3 Ø16 x 31 Ø18 x 12 68 DB21305B3S515
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
M80 mm inch Holes Face Gauge (kg) Number
254 10 3 Ø16 x 15 Ø18 x 9 57 DB21254C3S516
300 12 3 Ø16 x 21 Ø18 x 9 68 DB21300C3S517
300 12 3 Ø19 x 09 Ø18 x 9 68 DB21300C3S518
305 12 3 Ø16 x 21 Ø18 x 9 69 DB21305C3S519

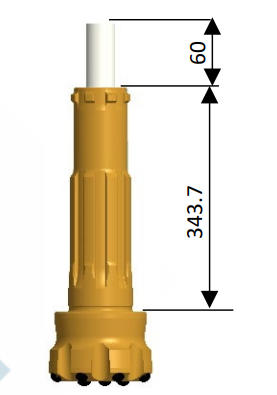

MACH 44

Flat Design Diameter Flush Buttons Dia x Qty Weight Part
M44 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø12 x 6 Ø14 x 8 8.0 DB28300A2S520
108 4 1/4 2 Ø12 x 6 Ø14 x 8 8.1 DB28108A2S521
110 4 1/3 2 Ø12 x 6 Ø14 x 8 8.5 DB28110A2S522
115 4 1/2 2 Ø13 x 6 Ø14 x 8 9.0 DB28115A2S523
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB28115A2S524
121 4 5/7 2 Ø13 x 8 Ø14 x 8 9.5 DB28121A2S525
127 5 2 Ø14 x 8 Ø14 x 8 10 DB28127A2S526
127 5 2 Ø14 x 8 Ø14 x 8 10 DB28127A2S527
130 5 1/8 2 Ø14 x 6 Ø16 x 8 10.5 DB28130A2S528
140 5 1/2 2 Ø14 x 8 Ø16 x 8 14.0 DB28140A2S529
150 6 2 Ø16 x 8 Ø16 x 10 17 DB28150A2S530
Concave Design Diameter Flush Buttons Dia x Qty Weight Part
MACH44 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø12 x 7 Ø14 x 8 8.0 DB28150B2S531
108 4 1/4 2 Ø12 x 6 Ø14 x 8 8.1 DB28108B2S532
110 4 1/3 2 Ø12 x 6 Ø14 x 8 8.5 DB28110B25533
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB28115B2S534
115 4 1/2 2 Ø12 x 7 Ø14 x 8 9.0 DB28115B2S535
121 4 5/7 2 Ø13 x 7 Ø14 x 8 9.5 DB28121B2S536
127 5 2 Ø14 x 6 Ø14 x 8 10 DB28127B2S537
130 5 1/8 2 Ø13 x 11 Ø14 x 9 10.5 DB28130B2S538
140 5 1/2 2 Ø16 x 7 Ø16 x 8 14.0 DB28140B2S539
152 6 2 Ø14 x 10 Ø16 x 8 17 DB28150B2S540
Convex Design Diameter Flush Buttons Dia x Qty Weight Part
MACH44 mm inch Holes Face Gauge (kg) Number
105 4 1/8 2 Ø13 x 7 Ø13 x 7 8.0 DB28105A2S541
110 4 1/3 2 Ø13 x 7 Ø14 x 7 8.5 DB28110C2S542
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB28115C2S543
115 4 1/2 2 Ø13 x 7 Ø14 x 8 9.0 DB28115C2S544
121 4 5/7 2 Ø13 x 7 Ø14 x 8 9.5 DB28121C2S545
127 5 2 Ø14 x 8 Ø14 x 8 10 DB28127C2S546
127 5 2 Ø14 x 8 Ø14 x 8 10 DB28127C2S547
130 5 1/8 2 Ø14 x 6 Ø16 x 8 10.5 DB28130C2S548
140 5 1/2 2 Ø14 x 8 Ø16 x 8 14.0 DB28140C2S549
152 6 2 Ø16 x 8 Ø16 x 10 17 DB28150C2S550
  Brochure
